The evaluation of system accuracy by IDK revealed that meisurements obtained with the
blood glucose meter fulfill the acceptance criteria asspecified by DIN EN ISO 15197:2015.
Combined Bland-Altman Diagram
Consensus Error Grid

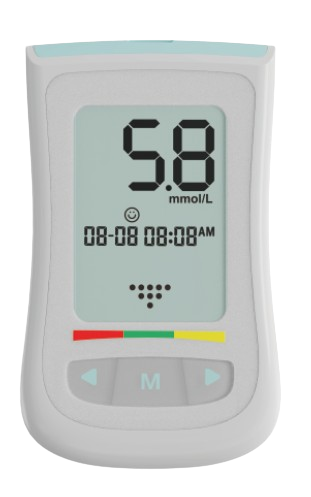

| Product description | BG-716b Bop Blood Glucose Monitoring System | Size | 106.3*65.3*23mm (L*W*H) |
| Assay method | Glucose dehydrogenase biosensor | Sheif life | Three years |
| Measurement range | 0.5-33.3mmol/L(9~600mg/dL) | LCD size | 53*37mm (L*H) |
| Sample | Fresh capillary whole blood, venous blood, neonatal blood | Weight | Approximate 84.2g, battery not included |
| Sample size | Approximate 0.6 microlitre | Operating environment | 5℃~45℃(41F~113F)10 ~ 90% RH(non-condensing) |
| Response time | 5 seconds | ||
| Calibration | Plasma equivalent glucose values | Meter storage enironment | -20℃~55℃(-4F~131F)10 ~ 95% RH(non-condensing) |
| Battery | 2xAAA alkaline batteries | ||
| Battery life | Approximately 1000 tests | Altitude | Up to 10000 feet(3048 meters)above sea level |
| Unit of measure | mmol/L or mg/dL; switchable | Strip storage environment | 1℃ ~ 30℃ (33.8F ~ 86F) |
| Memory | 1000 blood glucose results with date and time | ||
| Hematocrit | 0%~70% |

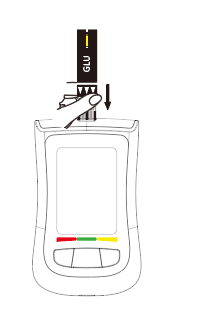

① lnsert Test Strip into Meter
② Blood Sampling

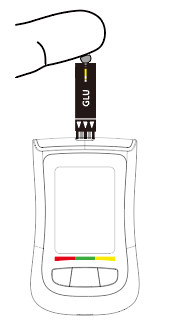

③ Apply Blood Sample

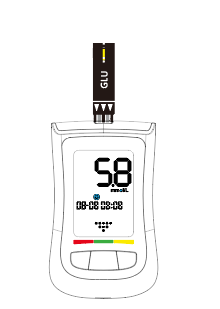

④ Read Results in 5 Seconds
