Multi-function Monitoring System CDS-101
sfsdfffffffffffffffffffff
The evaluation of system accuracy by lDK revealed that meisurements obtained with the blood glucose meter fulfill the acceptance criteria asspecified by DIN EN ISO 15197:2015.

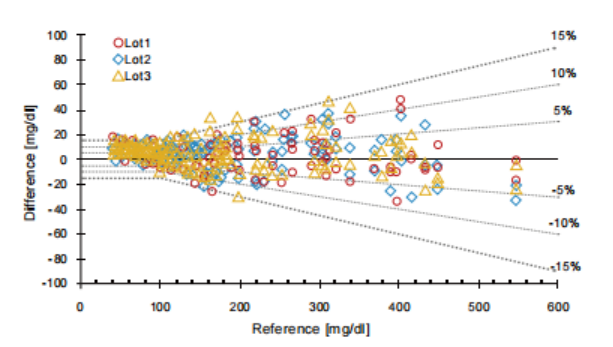

Combined Bland-Altman Diagram

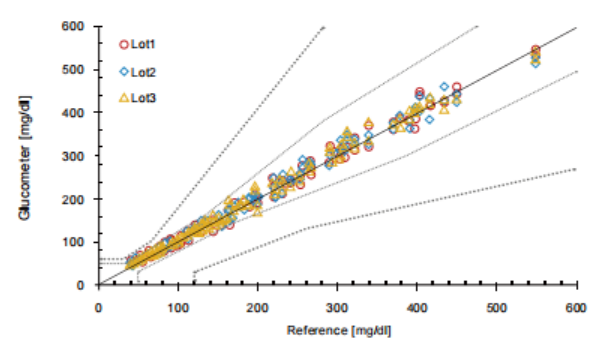

Consensus Error Grid
| Product description | BG-710 Blood Glucose Monitoring System | Size | 94.9*56.5*22.8(L*M*H) |
| Assay method | Glucose dehydrogenase biosensor | Sheif life | Three years |
| Measurement range | 0.5-33.3mmol/L(9~600mg/dL) | LCD size | 35.4*30.9(L*H) |
| Sample | Fresh capillary whole blood, venous blood, neonatal blood | Weight | Approximate 50.6g, battery not included |
| Sample size | Approximate 0.6 microlitre | Operating environment | 5℃~45℃(41F~113F)
10 ~ 90% RH(non-condensing) |
| Response time | 5 seconds | ||
| Calibration | Plasma equivalent glucose values | Meter storage enironment | -20℃~55℃(-4F~131F)
10 ~ 95% RH(non-condensing) |
| Battery | 2xAAA alkaline batteries | ||
| Battery life | Approximately 1000 tests | Altitude | Up to 10000 feet(3048 meters)above sea level |
| Unit of measure | mmol/L or mg/dL; switchable | Strip storage environment | 1℃ ~ 30℃ (33.8F ~ 86F) |
| Memory | 1000 blood glucose results with date and time | ||
| Hematocrit | 0% ~ 70% |

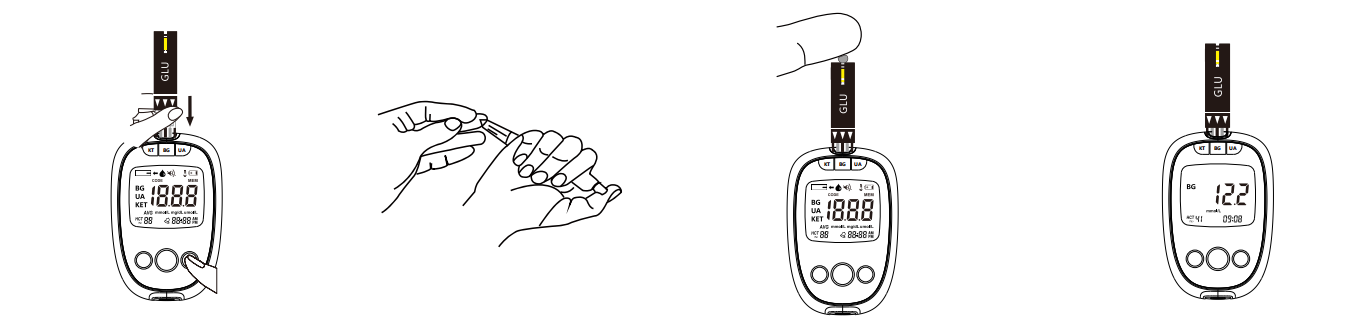

① lnsert Test Strip into Meter
② Blood Sampling
③ Apply Blood Sample
④ Read Results in 5 Seconds
